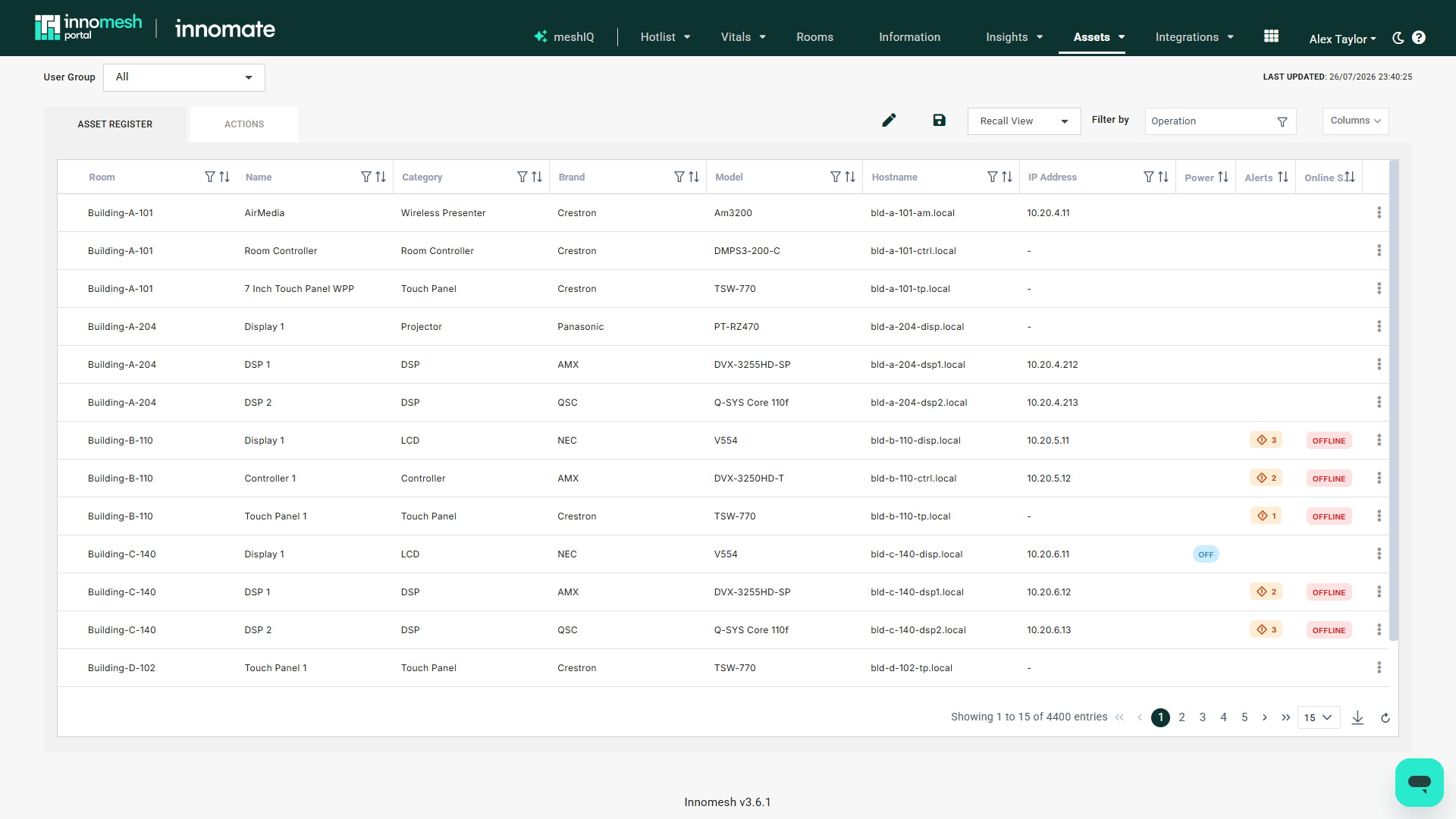

The Assets page displays a comprehensive inventory of every device across your Innomesh environment. It provides searchable columns, sorting, filtering, and quick access to device controls.
Assets page | Innomesh Portal
Table Columns
The Assets table presents the following searchable columns:
| Column | Description |
|---|---|
| Room | Location where the device is deployed |
| Name | User-defined device identifier (e.g. “Projector”) |
| Category | Device type such as Encoder, Decoder, Touch Panel, or Document Camera |
| Brand | Manufacturer (Crestron, Panasonic, etc.) |
| Model | Model name or number |
| Hostname | DHCP-configured device address |
| IP Address | Device network address |
| IP Port | Communication port (e.g. 1024 for Panasonic devices) |
| MAC Address | Hardware identifier |
| Serial Number | Unique device identifier |
| Firmware | Device software version |
| On/Off | Current power status |
| Alerts | Count of currently active alerts on the device, coloured by highest severity |
| Last Seen | Timestamp of the last time the device was seen online (see Asset Last Seen) |
| Online/Offline | Connectivity status |
Use the Columns button to show or hide columns based on your needs.

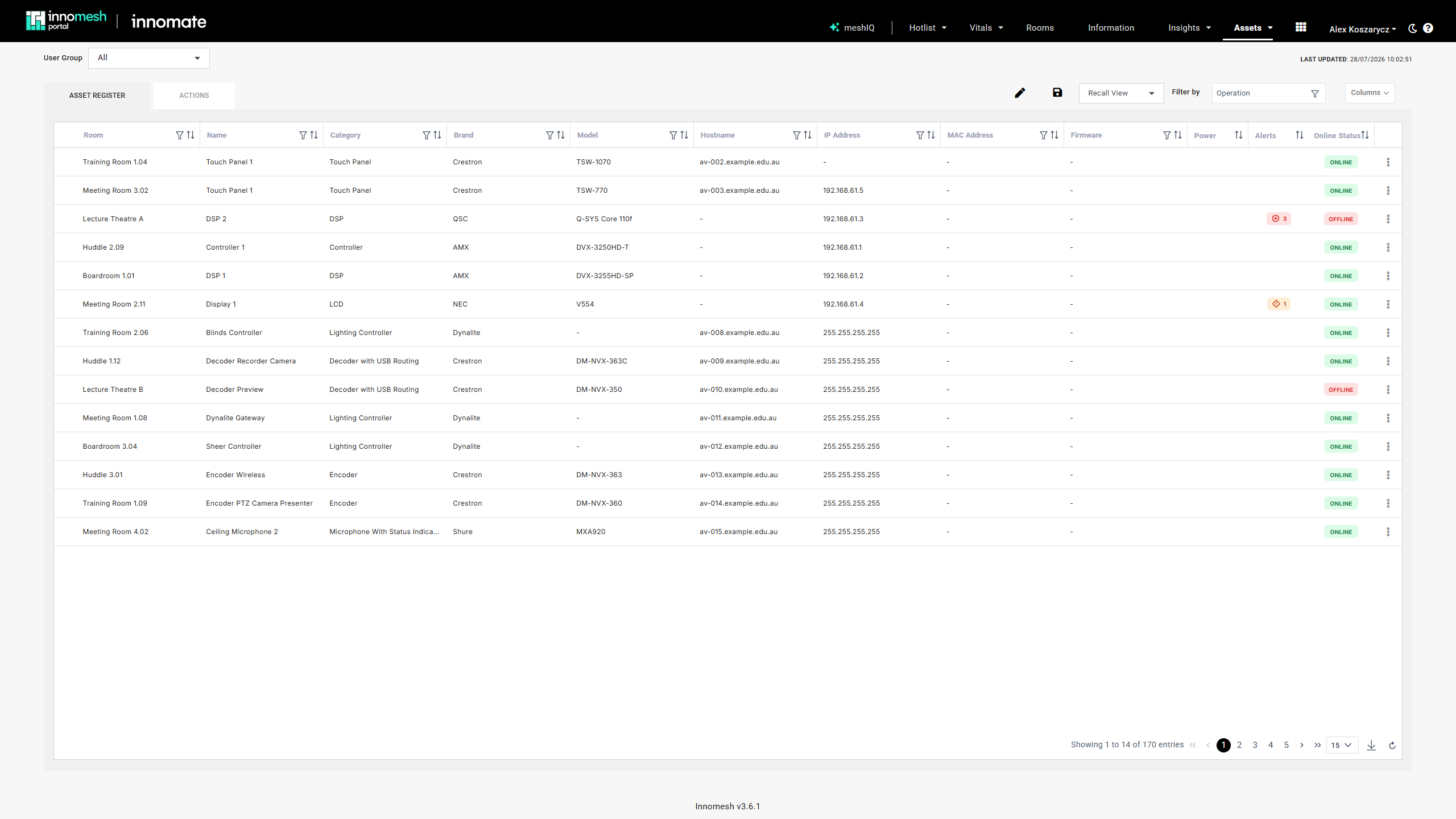

Alerts Column
The Alerts column shows how many alerts are currently active on each device, so a problem device is visible without opening the Hotlist.
- The tag shows the total count across all severities. A device with 1 High and 2 Medium alerts shows
3. - The tag colour and icon match the highest current severity, using the same scheme as the Hotlist. Hover the tag for the breakdown by severity.
- Devices with no active alerts show nothing at all, keeping the column quiet for the common case.
- Click the tag to open the Hotlist pre-filtered to that device.
The count covers alerts from every source, including compliance alerts raised by property-based automation policies.

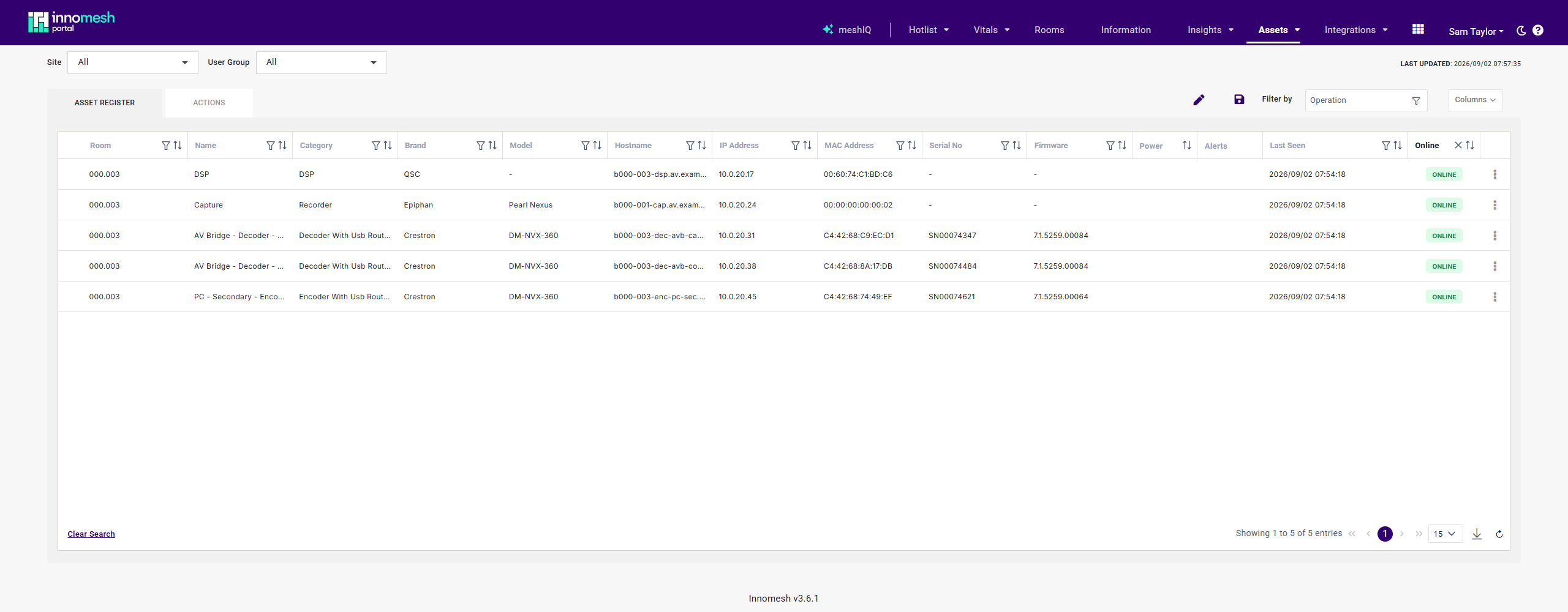

Asset Last Seen
The Last Seen column records the last time each device was seen online, so audit and stocktake teams can distinguish a device that dropped out an hour ago from one that has been dark for a year. The value is derived from the device’s monitoring state reports and is retained even while the device is offline.
- Timestamps display in your local time in the format
yyyy/mm/dd hh:mm:ss(24-hour). - The value updates in 15 minute intervals, and refreshes within minutes when a device goes offline or comes back online. Hover over a timestamp for a reminder of the update cadence.
- A device that has never been seen online shows
-. Hover over the cell for the Never seen tooltip. - The column is visible by default and can be hidden via the Columns menu.
Sorting and Filtering
Sort the column in either direction to surface the most recently or least recently seen devices. Devices that have never been seen sort last in both directions.
The column filter accepts a date and time value with these operators:
| Operator | Use it to find |
|---|---|
| Is greater than / Is greater than or equal to | Devices seen after a point in time |
| Is less than / Is less than or equal to | Devices not seen since a point in time |
| Is empty / Is not empty | Devices that have never been seen (or exclude them) |
Last Seen in CSV Exports
When the Last Seen column is enabled, the CSV export includes it, covering the full filtered result set rather than just the current page. Values render exactly as on screen, with the literal value Never for devices that have never been seen.
Room Support View
Last Seen also appears in the Room Support View. On the Assets tab, hover over a device’s ONLINE or OFFLINE status tag to see Last seen: <timestamp>, or Last seen: never for a device that has never been online.
Asset Information
Click any row to open the Asset Information page, which contains:
- Device specifications
- Live status
- Logs
- Alerts
- Files and resources
Ellipsis Menu Options
Hover over any asset row and click the ellipsis icon to access additional options.
Base Options (All Devices)
- Show Password displays the configured username and password for Sight authentication. Passwords can be copied to the clipboard for troubleshooting access. Editing the password from this interface will also change it for that Sight-enabled device.
- Show Room opens the Rooms tab and navigates to the Room Support View for the associated room.
- Show Alert History opens a searchable, downloadable list of current and past device alerts.
Ops Options
With Innomesh Ops enabled, additional device-specific controls appear in the Trigger Operation dropdown:
- Power On / Power Off
- Set Input (some Panasonic displays and projectors)
- Preset Recall (Panasonic, Vaddio, and Sony cameras)
- Factory Reset (Crestron devices)
- Reboot (Crestron devices)
- Update Firmware (Crestron devices)
- Update Touch Panel File (Crestron touch panel devices)
- Restart Zoom (Zoom Rooms)
- Update Computer Version (Zoom Rooms)
- Update Controller Version (Zoom Rooms)
- Update Device Settings (Zoom Rooms)
CSV Export
Use the download button to export the current filtered asset list as a CSV file for offline analysis.
Pagination
Adjust the number of devices displayed per page using the pagination controls at the bottom of the table (15, 30, 50, or 100 devices per page).
