Vitals: Network Dashboard

The Network dashboard provides comprehensive network performance and transaction monitoring. Open it from the Network tab of the Vitals page.

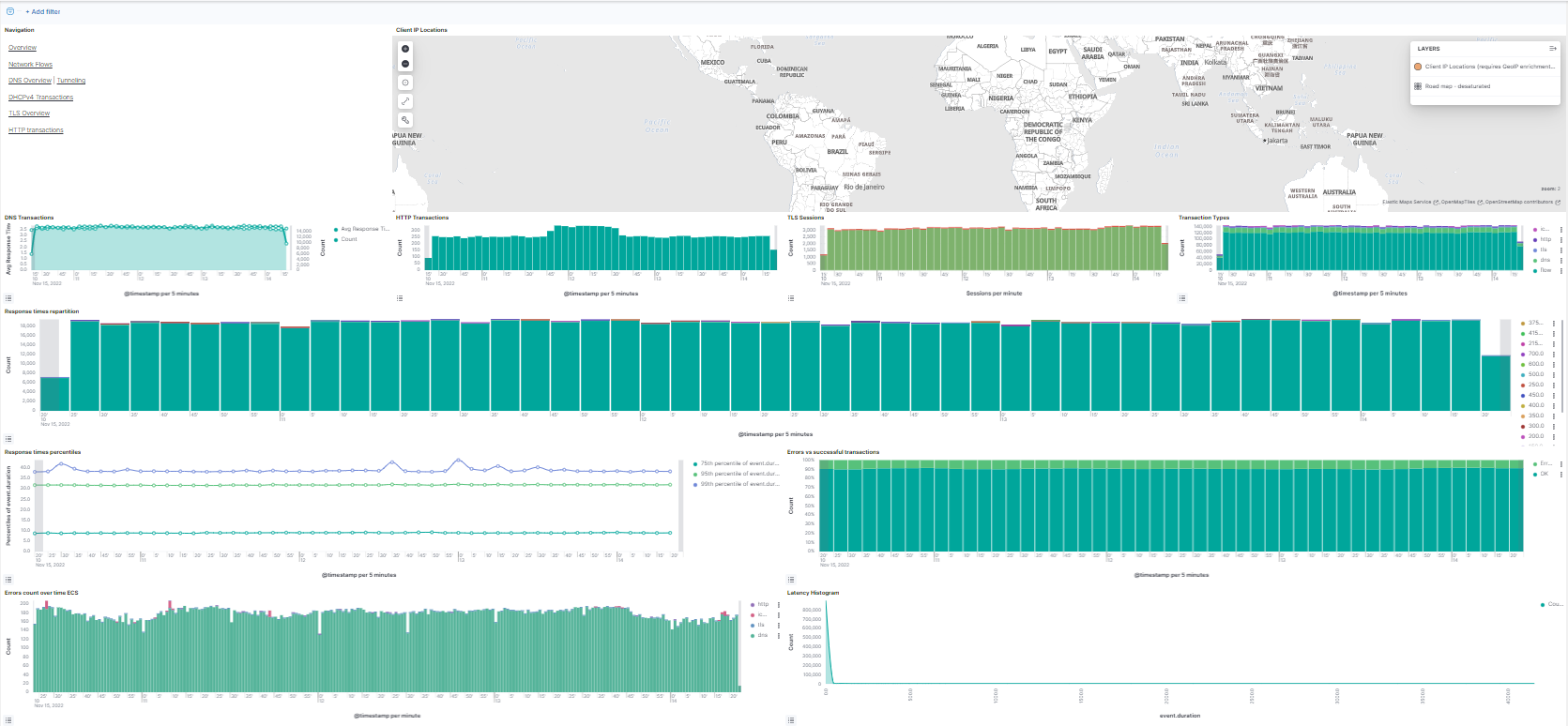

Network dashboard with Client IP Locations map, DNS, HTTP, TLS, transaction type and latency panels

Network provides comprehensive network performance and transaction monitoring:

  • Client IP Location shows a world map visualisation of connected users.
  • DNS Transactions tracks hostname resolution frequency.
  • HTTP Transactions measures server connections every five minutes.
  • TLS Sessions shows secure sessions established per minute.
  • Transaction Types provides a quantitative breakdown of transaction categories.
  • Response Times displays distribution and percentile analysis.
  • Errors vs. Successful Transactions provides comparative success and failure metrics.
  • Latency Histogram visualises request-to-completion time.
